In addition to the following ranges, bespoke flow control chambers can be manufactured to suit specific requirements.
Applications – permeable paving, filter drains and other shallow SuDS elements where water is pre-filtered.

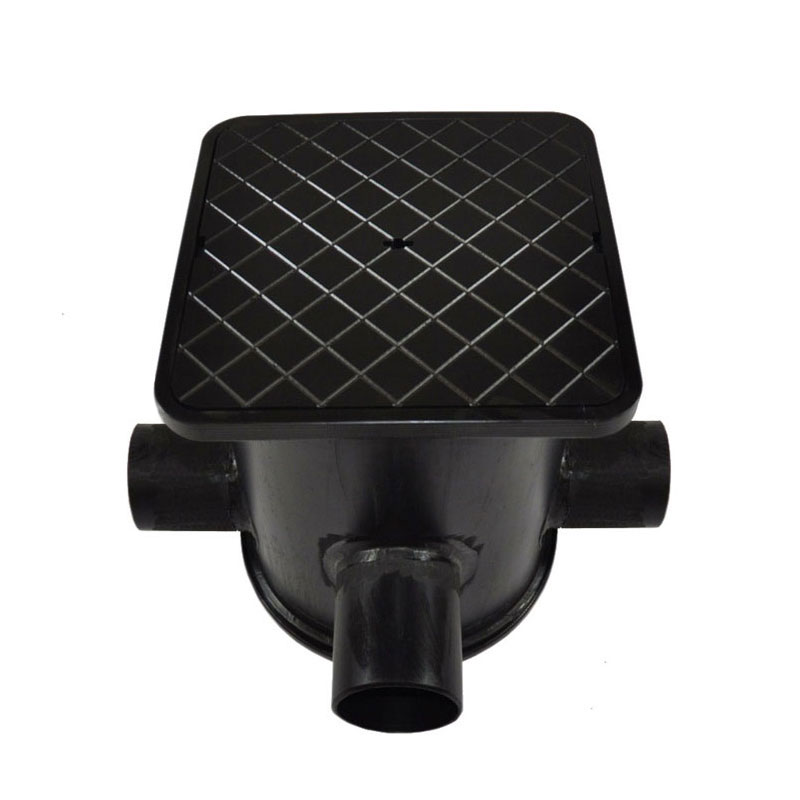

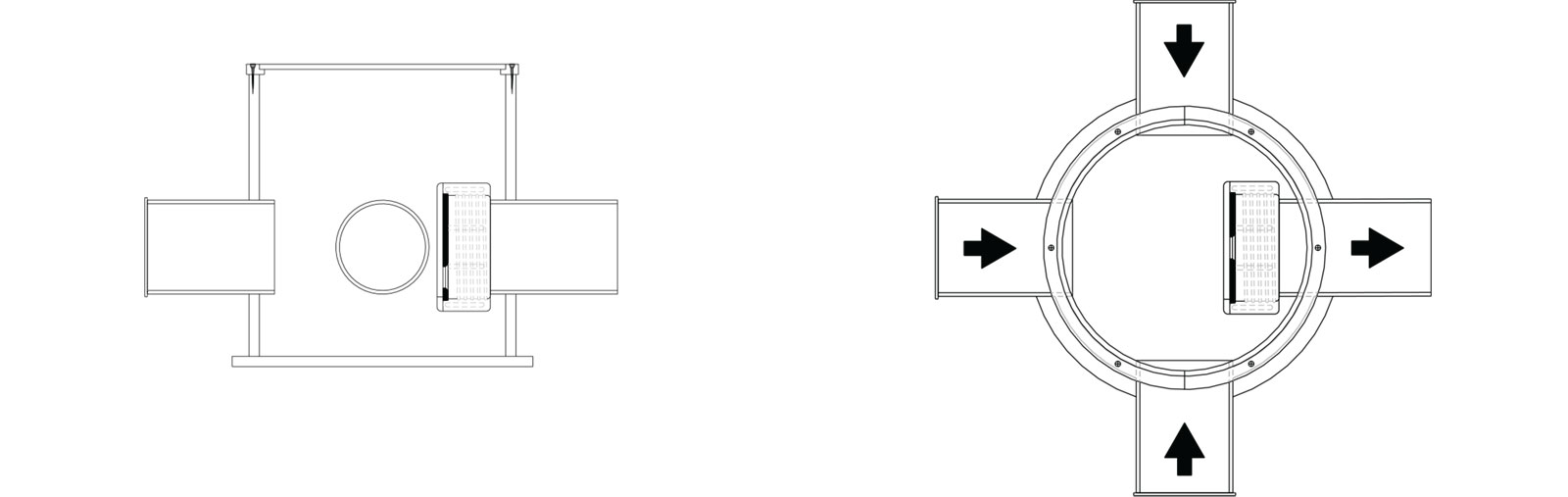

A standard, shallow flow control chamber with an un-guarded single orifice (to specified diameter), designed to manage outflows from permeable paving or other open graded sub-base construction. Its small size and low cost make it ideal for check dams between permeable paving compartments.
The removable cap locks in position with the orifice at invert level. Three 110mm diameter inlet pipe connection stubs offer layout flexibility. Supplied with a temporary protective site cover (permanent cover and frame not included). Suitable for a maximum overall depth of 600mm (finished cover to base).
Bespoke flow control chambers can be manufactured to suit specific requirements.
Key Points:
Please specify:
Applications – all SuDS elements where water is not pre-filtered and at the end of the management train.

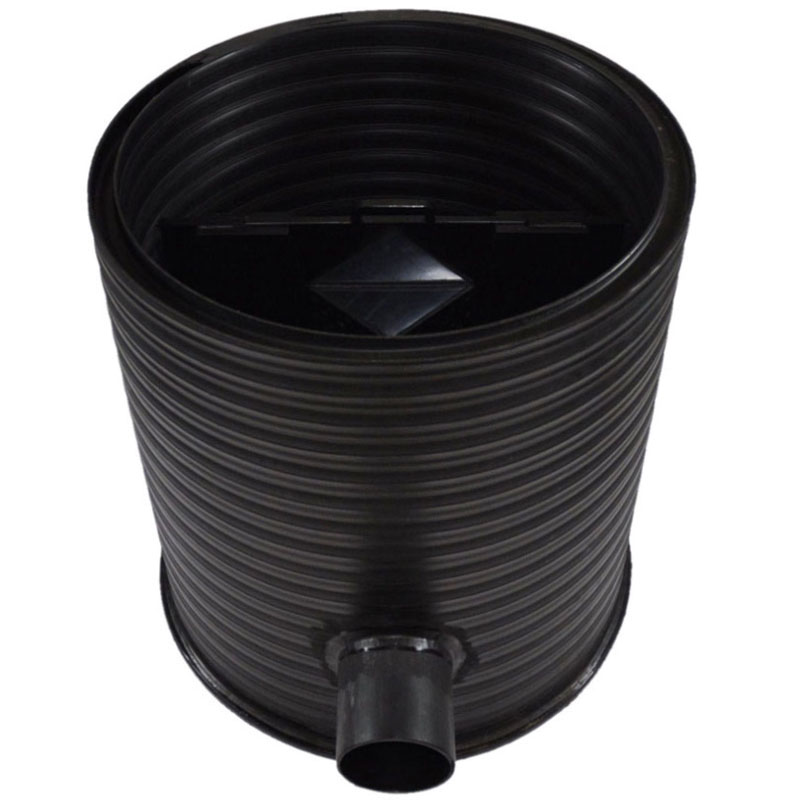

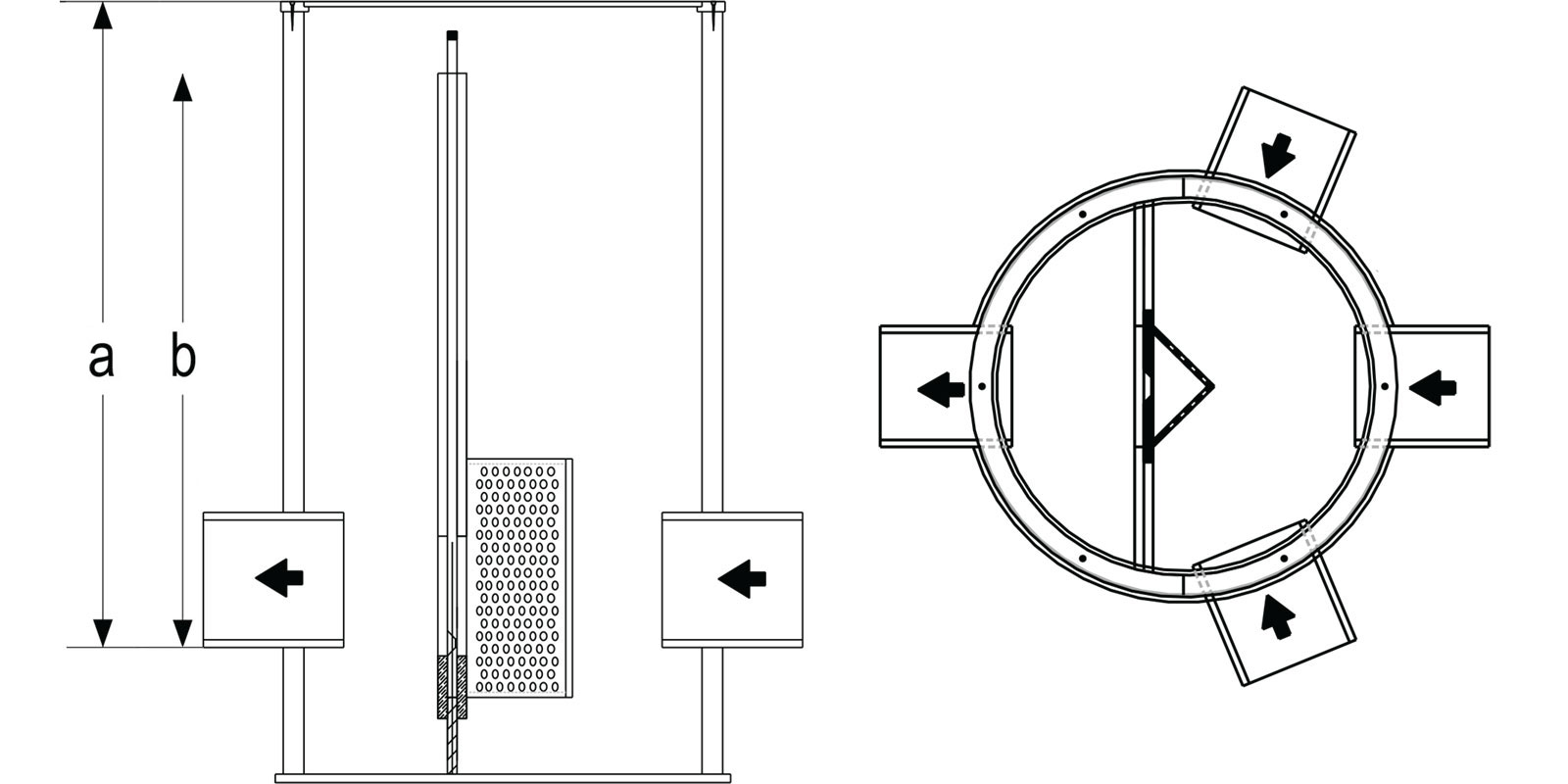

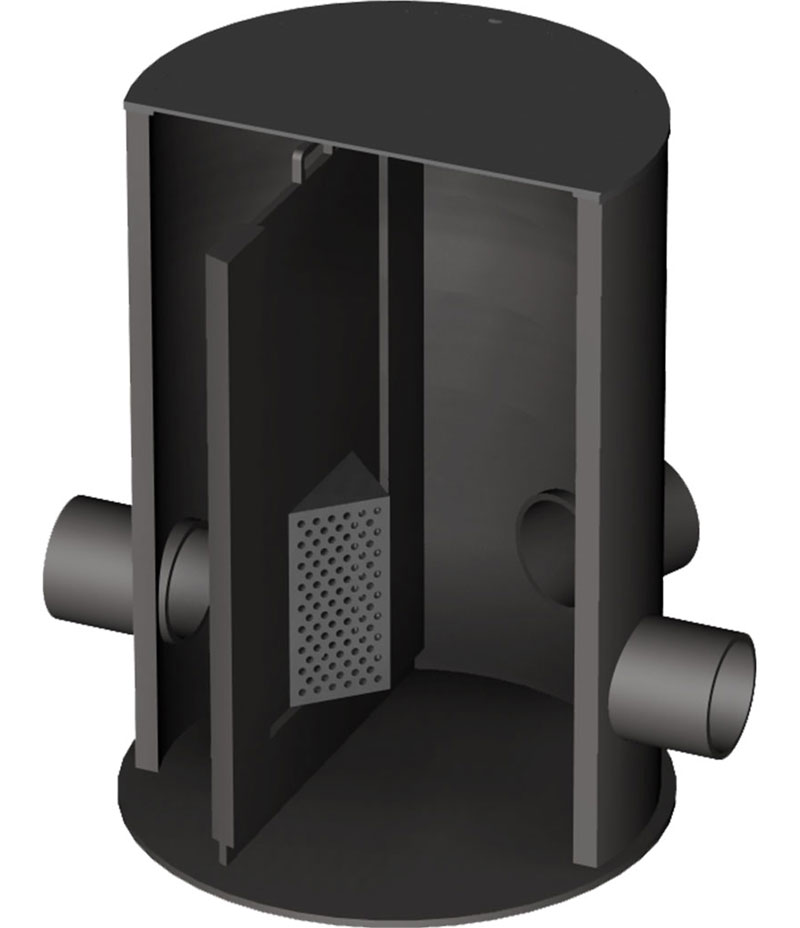

A flexible, universal flow control chamber suitable for any SuDS technique, with level inverts. The slide-out centre plate contains a circular orifice (to specified diameter), protected by an upstream guard, and acts as an overflow weir. Additional orifices can be added to order.
Three 160mm diameter inlet pipe connection stubs offer layout flexibility. Supplied with a temporary protective site cover (permanent cover and frame not included). Suitable for depths ranging from 537mm to 1.2m (finished cover to base). An optional foul air trap is available when connected to combined drains.
Bespoke flow control chambers can be manufactured to suit specific requirements.
Key Points:
Please specify:

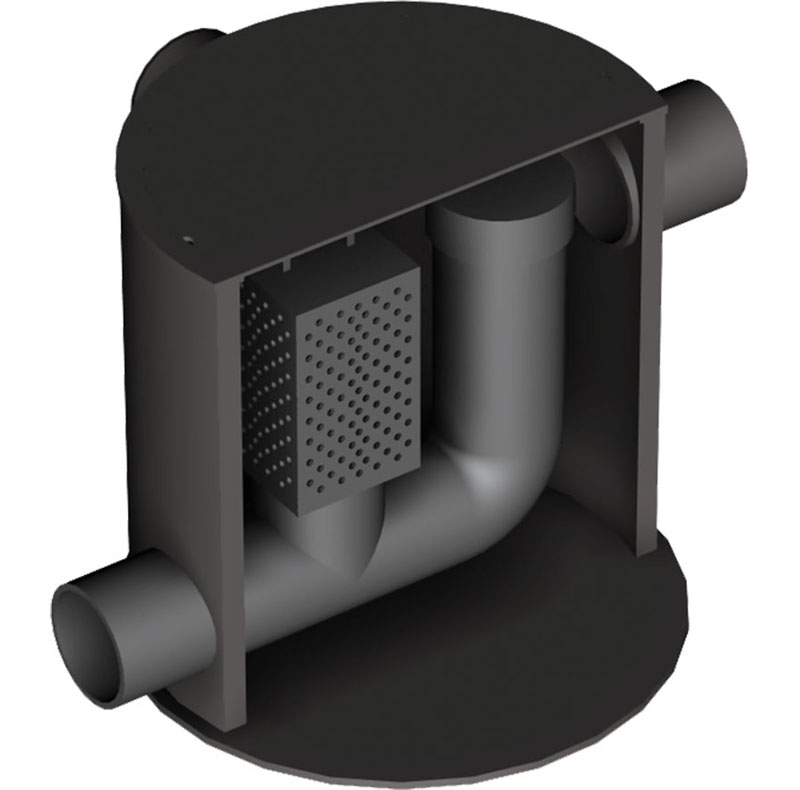

A standard flow control chamber with a single, guarded orifice (to specified diameter), designed to manage outflows from permeable paving or other open graded sub-base construction. Stepped inverts simplify the construction of transitions from shallow permeable paving to deeper constructions.
The protective guard and orifice cap are removable, and the rodding access upstand can act as an overflow with its cap removed. Three 110mm diameter inlet pipe connection stubs offer layout flexibility. Supplied with a temporary protective site cover (permanent cover and frame not included).
Bespoke flow control chambers can be manufactured to suit specific requirements.
Key Points:
Please specify:

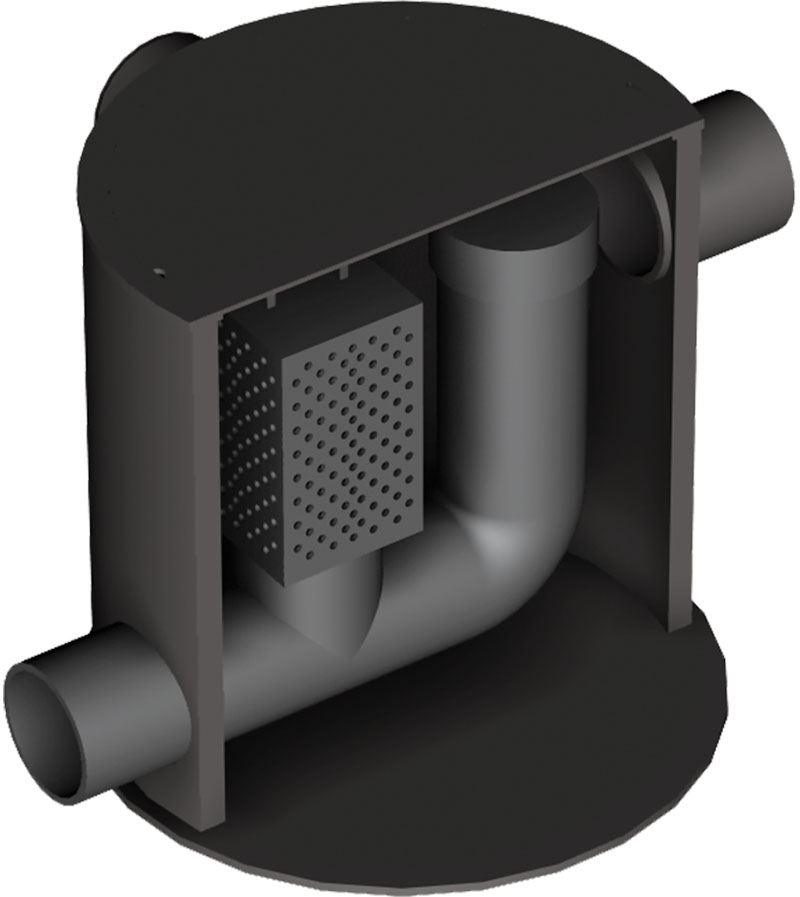

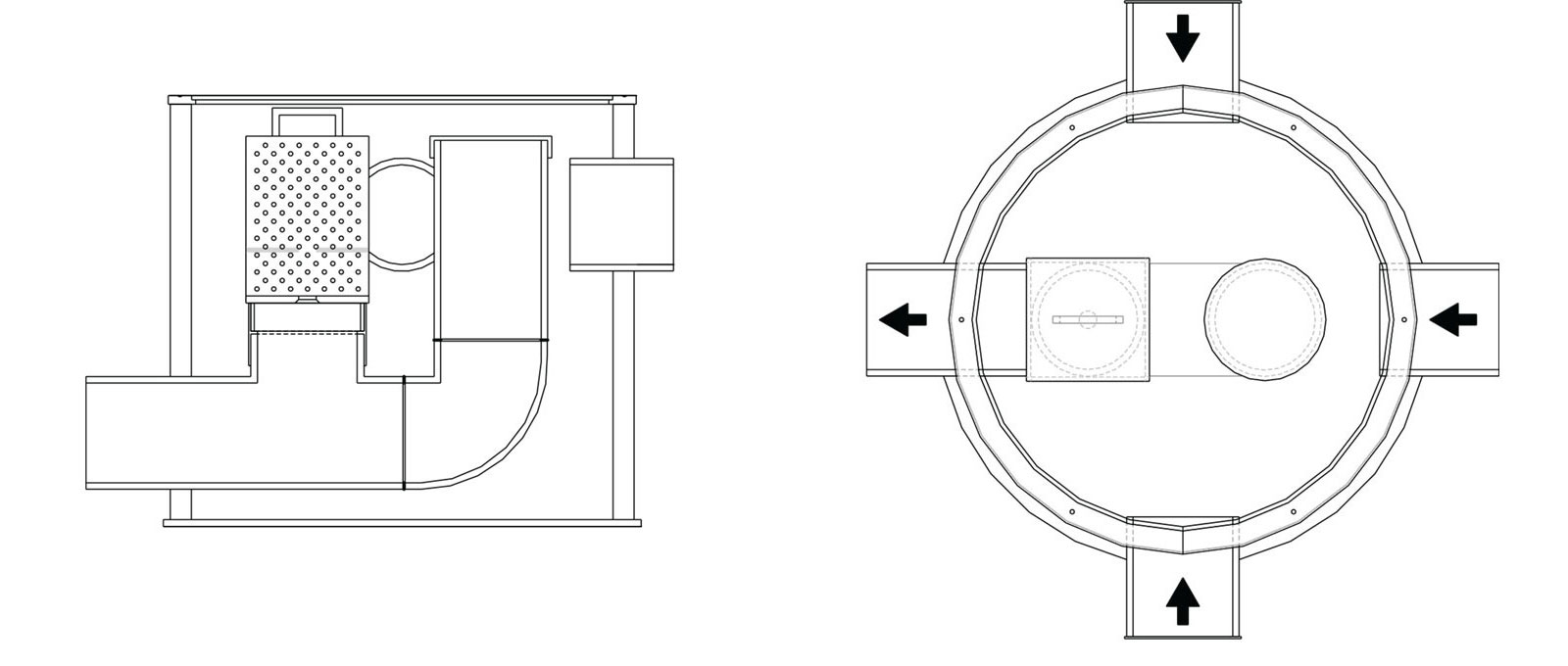

A larger diameter, standard flow control chamber with a single, guarded orifice (to specified diameter), designed to manage outflows from permeable paving or other open graded sub-base construction. Stepped inverts simplify the construction of transitions from shallow permeable paving to deeper constructions.
The protective guard and orifice cap are removable, and the rodding access upstand can act as an overflow with its cap removed. Three 160mm diameter inlet pipe connection stubs offer layout flexibility. Supplied with a temporary protective site cover (permanent cover and frame not included).
Bespoke flow control chambers can be manufactured to suit specific requirements.
Key Points:
Please specify:

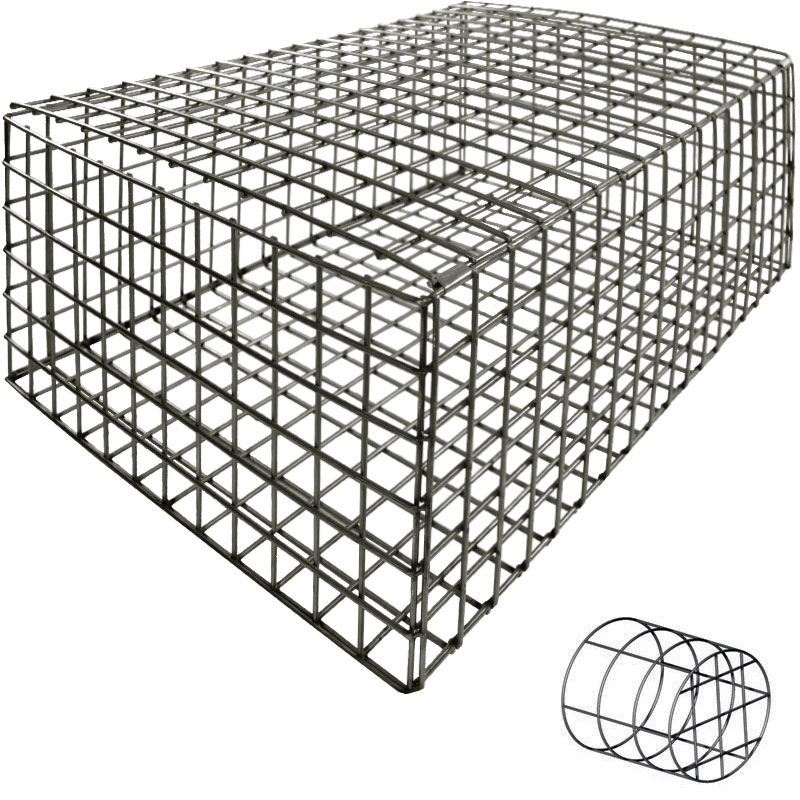

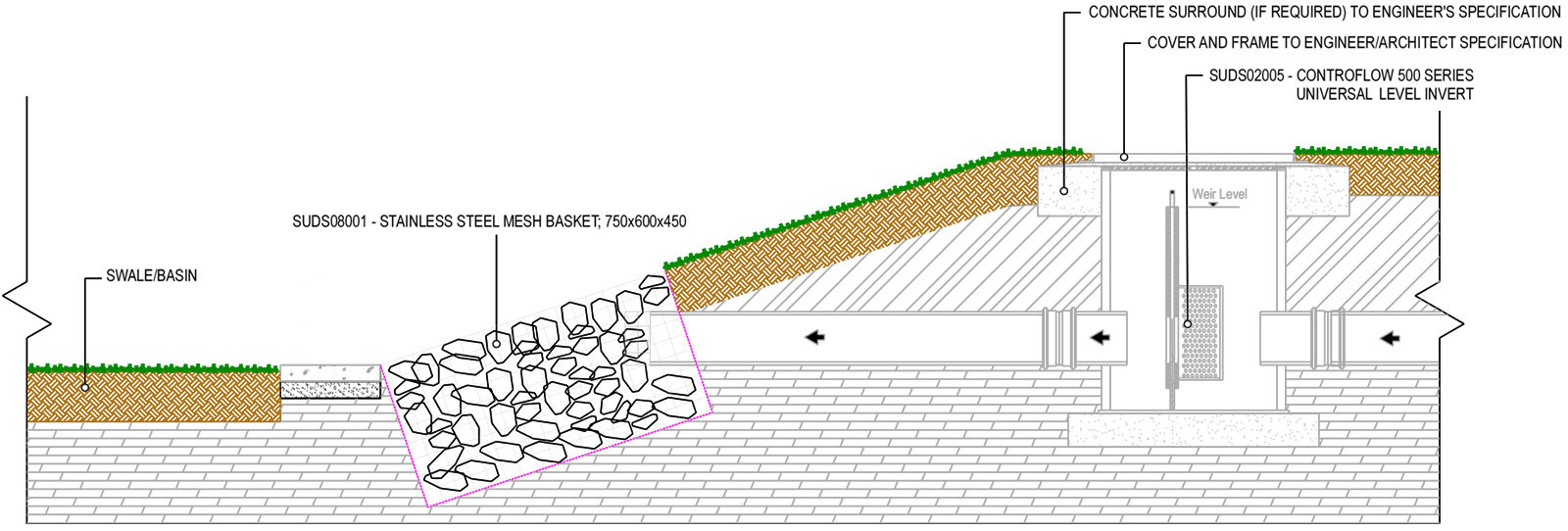

A universal 750x600x450mm stainless steel mesh SuDS Basket designed to be filled with 80mm – 150mm stone and wrapped in geotextile (which can be cut from the exposed top once grass has established). It acts as an attractive pipe inlet or outlet within landscaped SuDS features such as swales, ponds and basins. It diffuses flows, and conceals and protects the pipe. Each SuDS Basket is supplied flat with crimp clips (fitted at 200mm centres) for simple assembly and stainless steel mesh pipe guard (to specified pipe size).
All baskets are supplied with a stainless
steel mesh pipe guard, sized to suit the inlet or outlet pipe.
Bespoke SuDS Baskets can be manufactured to suit specific requirements.
A SuDS basket information and instalation guide is available to download here.
Key Points:
Please specify:
